Etched Mesh Screen

We YanMing is a top photo etching factory in China, supplying different sizes of Etched Mesh Screen with our latest automatic chemical metal acid etching production lines, we devoted ourselves to offering the most precision Etched Mesh Screen and other metal etching products, welcome you to visit our etching factory at your convenience or send your inquiry to [email protected]

Send Inquiry

Product Description

Etched Mesh Screen




1
 Etched Mesh Screen Introduction:





Etched Mesh Screen is a metal sheet full of small or tiny size holes/apertures for fine particle filter applications,it can prevent some particular larger size things passing through. It is widely used in petroleum, chemical, food, juice filter, pharmaceutical precision filters, filter plates, filter cartridges, filters; metal leak plates etc.




2
 Etched Mesh Screen Specification:





Item

Etched Mesh Screen

Material

Stainless Steel, Aluminum,Copper, Brass or other metal sheet

Process

Chemical Etching

Thickness

0.02 ~ 1mm or customized

0.02-1.0mm to be etched, over 1.0 mm to bestamped

Size

Custom size, Min: 1 x 1mm, Max: 400 x 600mm

HoleShape

Hexagon,Diamond,Oval,Round,Rectangle,Square or customized

Etching Precision

0.02-0.1mm thickness, T=±0.02mm

0.1-0.25mm thickness, T=±0.03mm-±0.05mm

0.5-1.0mm thickness, T=±0.1mm

Smallest hole size should be at least as material thickness

Surface Finish

Plating, Polishing,Brushing etc

Lead Time

3-5 days for samples, mass production within a week

Certificate

RoHS, ISO9001, ISO14001






3

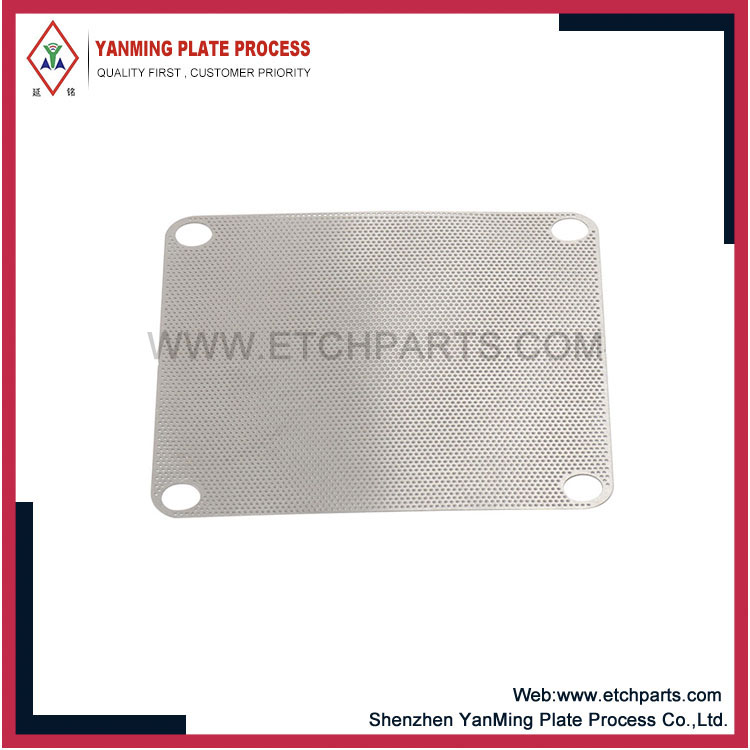

 Pictures of the Etched Mesh Screen

Etched Mesh Screen


4
 Feature of the metal photo etched


- Design flexibility

- High precision

- No/Low mold cost

- No burr

- Short lead time



5
 Metal Etching Process:


Etched Mesh Screen



6
 Metal Etching Capacity


With our different kinds of automatic etching production lines, we have strong etching production capacity to guarantee a fast delivery in good quality for your order of Semiconductor Lead Frame.

Etched Mesh ScreenEtched Mesh Screen


7
 FAQ




Q: Where is your etching factory?

A: Our etching factory is in ChangAn Dongguan, near Shenzhen and Guangzhou, you can scan below QR code to have a panoramic view of our factories.

Etched Mesh Screen

Q: Are your etching factory authorized by the government?

A: Yes, we have etching production license, all our waste water meet the requirement of environmental protection, some small etching factories without production license may be closed suddenly because the stricter environmental rules in China, your deposit or payment paid will be put into water.



Q:What else products are you supplying besides metal chemical photo etching products?

A: We are also professionally manufacturing acrylic/glass panels, nameplates, panel graphic overlays and diecutting parts etc from 2006, you can refer to our another website: www.paneloverlay.com
