Diamond Mesh Screen

The YanMing® is a top photo etching factory in China, supplying different sizes of Diamond Mesh Screen with our latest automatic chemical metal acid etching production lines, we devoted ourselves to offering the most precision Diamond Mesh Screen and other metal etching products, welcome you to visit our etching factory at your convenience or send your inquiry to sales1@paneloverlay.com.

Send Inquiry

Product Description

As a professional high quality Diamond Mesh Screen manufacture, you can rest assured to buy Diamond Mesh Screen from our factory and we will offer you the best after-sale service and timely delivery.




1
 Diamond Mesh Screen Introduction:

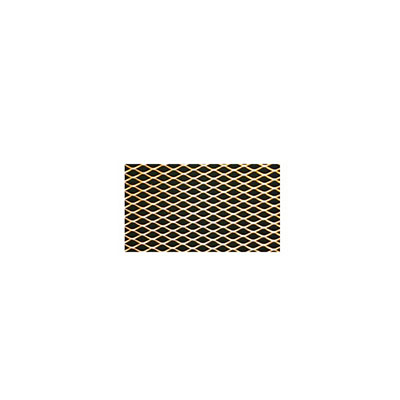

The YanMing® Diamond Mesh Screen is a metal sheet full of diamond-shaped holes/apertures for fine particle filter applications, decoration or safty functions, it can prevent some particular larger size things passing through. It is widely used in petroleum, chemical, food, juice filter, pharmaceutical precision filters, filter plates, filter cartridges, filters; metal leak plates etc.




2
The YanMing®  Diamond Mesh Screen Specification:





Item

Diamond Mesh Screen

Material

Brass or other metal sheet

Process

Chemical Etching

Thickness

0.02 ~ 1mm or customized

0.02-1.0mm to be etched, over 1.0 mm to bestamped

Size

Custom size, Min: 1 x 1mm, Max: 400 x 600mm

HoleShape

Hexagon,Diamond,Oval,Round,Rectangle,Square or customized

Etching Precision

0.02-0.1mm thickness, T=±0.02mm

0.1-0.25mm thickness, T=±0.03mm-±0.05mm

0.5-1.0mm thickness, T=±0.1mm

Smallest hole size should be at least as material thickness

Surface Finish

Plating, Polishing,Brushing etc

Lead Time

3-5 days for samples, mass production within a week

Certificate

RoHS, ISO9001, ISO14001






3

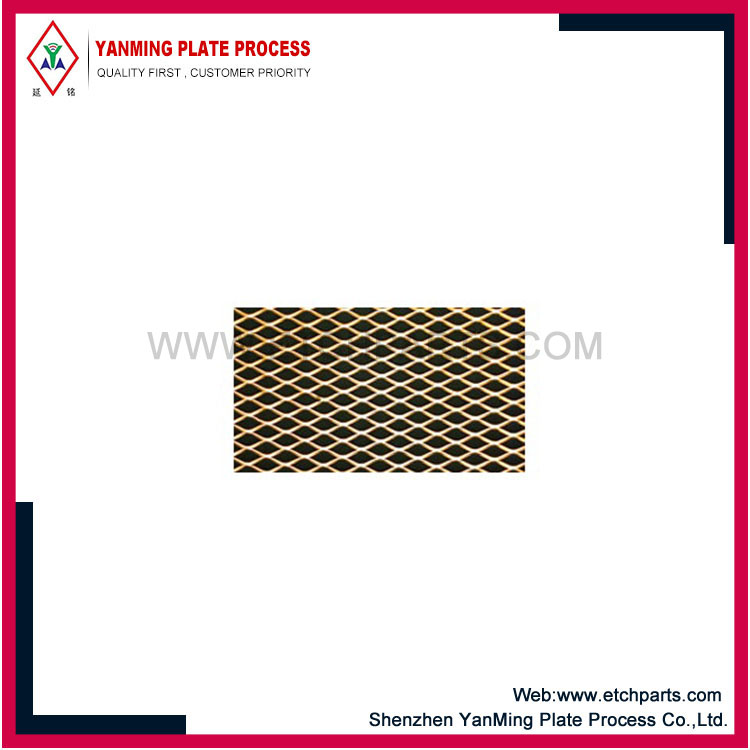

 Pictures of the Diamond Mesh Screen

Diamond Mesh Screen


4
 Feature of the metal photo etched Diamond Mesh Screen


- Design flexibility

- High precision

- No/Low mold cost

- No burr

- Short lead time



5
 Metal Etching Process:


Diamond Mesh Screen



6
 Metal Etching Capacity


With our different kinds of automatic etching production lines, we have strong etching production capacity to guarantee a fast delivery in good quality for your order of Semiconductor Lead Frame.

Diamond Mesh ScreenDiamond Mesh Screen


7
 FAQ




Q: Where is your etching factory?

A: Our etching factory is in ChangAn Dongguan, near Shenzhen and Guangzhou, you can scan below QR code to have a panoramic view of our factories.

Diamond Mesh Screen

Q: Are your etching factory authorized by the government?

A: Yes, we have etching production license, all our waste water meet the requirement of environmental protection, some small etching factories without production license may be closed suddenly because the stricter environmental rules in China, your deposit or payment paid will be put into water.



Q:What else products are you supplying besides metal chemical photo etching products?

A: We are also professionally manufacturing acrylic/glass panels, nameplates, panel graphic overlays and diecutting parts etc from 2006, you can refer to our another website: www.paneloverlay.com
