Copper Mesh Screen

The YanMing® is a top photo etching factory in China, supplying different sizes of Copper Mesh Screen with our latest automatic chemical metal acid etching production lines, we devoted ourselves to offering the most precision Copper Mesh Screen and other metal etching products, welcome you to visit our etching factory at your convenience or send your inquiry to sales1@paneloverlay.com.

Send Inquiry

Product Description

The following is the introduction of high quality Copper Mesh Screen, hoping to help you better understand Copper Mesh Screen. Welcome new and old customers to continue to cooperate with us to create a better future!




1
 Copper Mesh Screen Introduction:





The YanMing® Copper Mesh Screen is a Copper metal sheet full of small or tiny size holes/apertures for fine particle filter or other applications,it can prevent some particular larger size things passing through. It is widely used in petroleum, chemical, food, juice filter, pharmaceutical precision filters, filter plates, filter cartridges, filters; metal leak plates etc.




2
 The YanMing® Copper Mesh Screen Specification:





Item

Copper Mesh Screen

Material

Copper or other metal sheet

Process

Chemical Etching

Thickness

0.02 ~ 1mm or customized

0.02-1.0mm to be etched, over 1.0 mm to bestamped

Size

Custom size, Min: 1 x 1mm, Max: 400 x 600mm

HoleShape

Hexagon,Diamond,Oval,Round,Rectangle,Square or customized

Etching Precision

0.02-0.1mm thickness, T=±0.02mm

0.1-0.25mm thickness, T=±0.03mm-±0.05mm

0.5-1.0mm thickness, T=±0.1mm

Smallest hole size should be at least as material thickness

Surface Finish

Plating, Polishing,Brushing etc

Lead Time

3-5 days for samples, mass production within a week

Certificate

RoHS, ISO9001, ISO14001






3

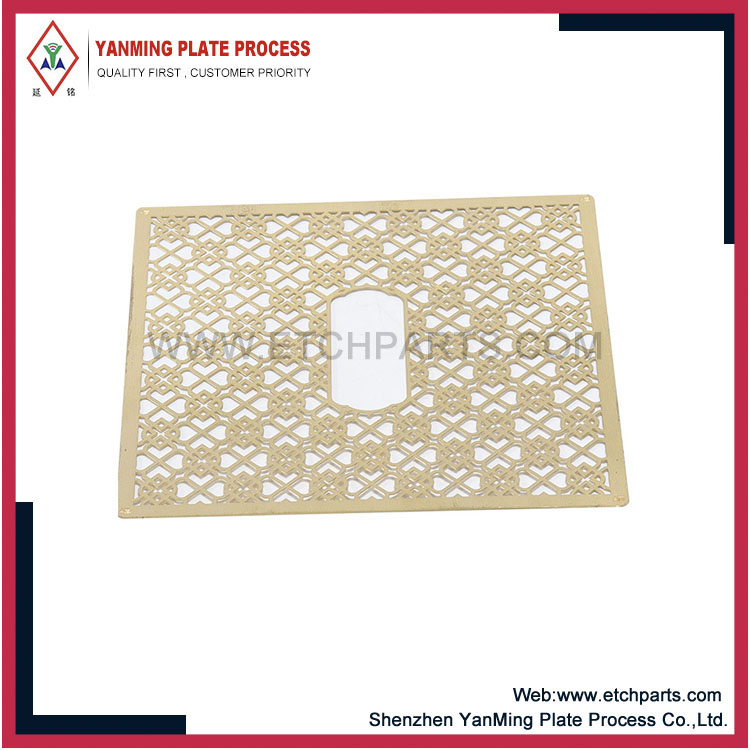

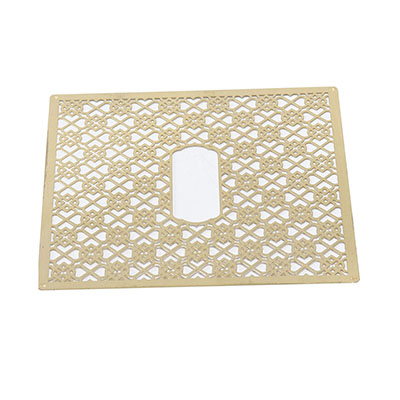

 Pictures of the Copper Mesh Screen

Copper Mesh Screen


4
 Feature of the metal photo etched Semiconductor Lead Frame


- Design flexibility

- High precision

- No/Low mold cost

- No burr

- Short lead time



5
 Metal Etching Process:


Copper Mesh Screen



6
 Metal Etching Capacity


With our different kinds of automatic etching production lines, we have strong etching production capacity to guarantee a fast delivery in good quality for your order of Semiconductor Lead Frame.

Copper Mesh ScreenCopper Mesh Screen


7
 FAQ




Q: Where is your etching factory?

A: Our etching factory is in ChangAn Dongguan, near Shenzhen and Guangzhou, you can scan below QR code to have a panoramic view of our factories.

Copper Mesh Screen

Q: Are your etching factory authorized by the government?

A: Yes, we have etching production license, all our waste water meet the requirement of environmental protection, some small etching factories without production license may be closed suddenly because the stricter environmental rules in China, your deposit or payment paid will be put into water.



Q:What else products are you supplying besides metal chemical photo etching products?

A: We are also professionally manufacturing acrylic/glass panels, nameplates, panel graphic overlays and diecutting parts etc from 2006, you can refer to our another website: www.paneloverlay.com
